SZL Biomass Fired Boiler

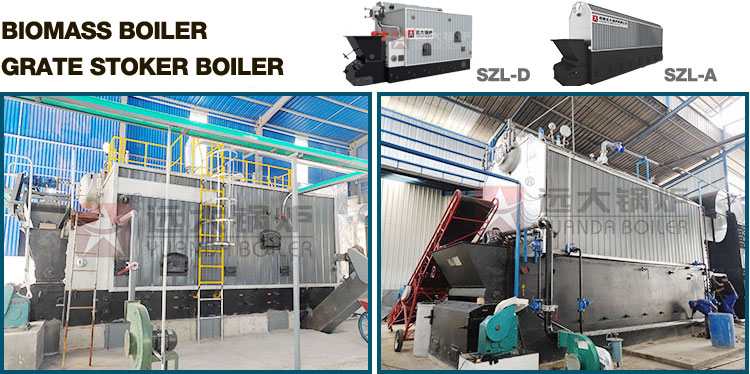

SZL series is horizontal water tube biomass boiler. Fully automatic and modular for quick installation. Two models are available: SZL-A and D-type. (SZW meaning with reciprocating/step grate)

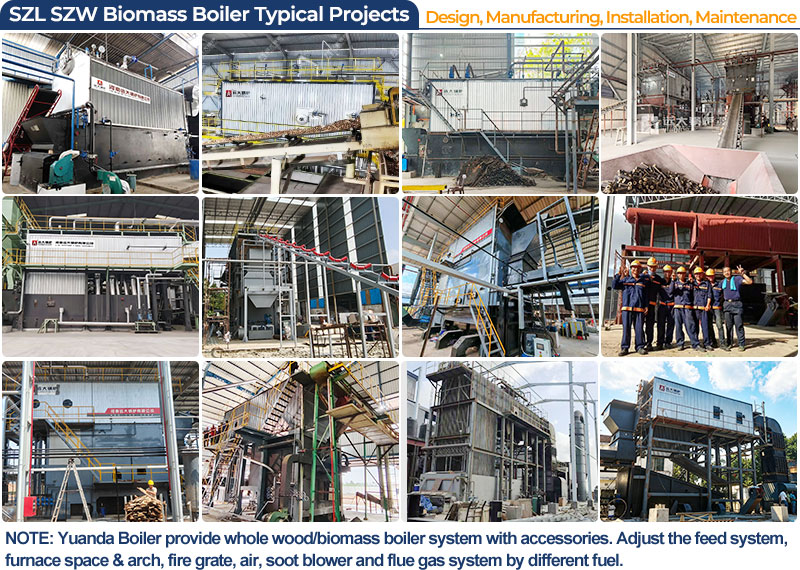

We customize fuel feeding and combustion system, furnace chamber and arches, air distribution system, ash removal system, and flue gas emission system based on the fuel type(calorific value, particle size, moisture content, ash content, and ash fusion temperature) This is essential for ensuring efficient boiler operation and stable steam supply.

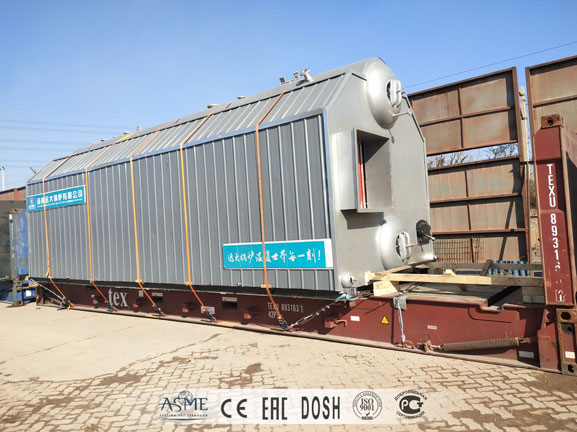

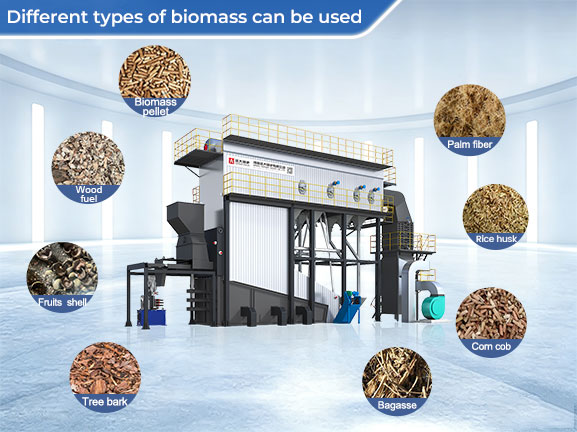

SZL boilers can burn biomass pellets, briquettes, wood chips, corn cobs, rice husks, palm shells, various nut shells, palm fiber, bagasse, wood waste, bark, agro waste from industrial processes, olive pomace, coffee grounds, and bulk biomass with high moisture content. Produce steam or hot water used for heating, drying, sterilization, cooking, driving steam turbines, and other thermal applications.

Features

★ Large furnace and high combustion chamber extend fuel residence time. Staged air distribution and combustion boost fuel-oxygen mixing improving burnout rate, controlling temperature and preventing slagging

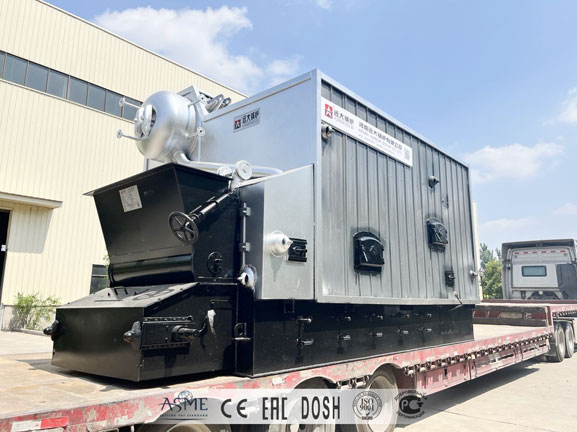

★ Membrane water-cooled walls and arches reduce air leakage and heat loss extending service life

★ Rational feeding and arch design prevent back-fire and pre-combustion

★ On-line soot blowers ensure no ash accumulation on heating surfaces

★ Well-arranged ash valves and cleaning doors facilitate ash conveying inspection and maintenance

★ Customized solutions save time and money. Customized designs for feeding, combustion, ash discharge, water treatment, and flue gas treatment systems, as well as boiler room layout.

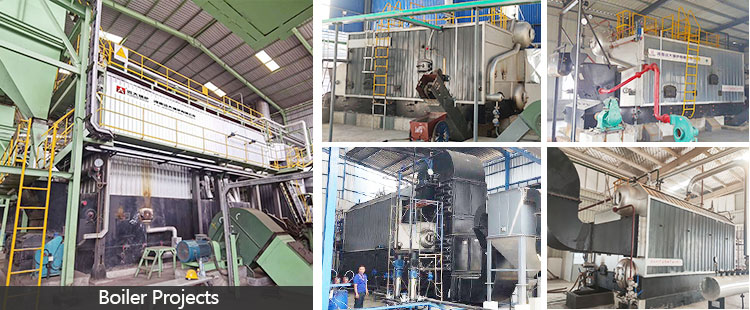

SZL watertube boiler covert biomass/coal/solid fuel to thermal energy, helps industries achieve cleaner production, lower operating costs, and reliable steam supply.

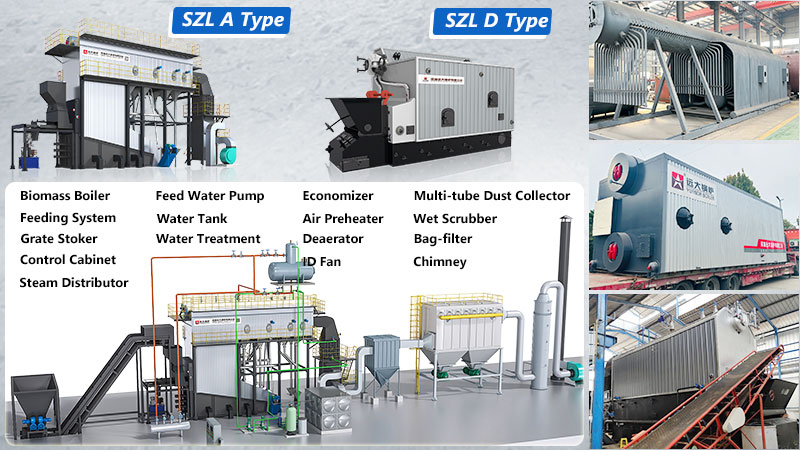

Except boiler, we supply completed boiler room equipment,like Water Softner+Treatment System, Air Distribution System, Fuel Feeding+Combustion System, Smoke Flue Gas Purification System, Soot blowing system, Blown down system, chemical dosing system, energy saving system, Automatic Control and Safety Protection System.

Detailed Advantages

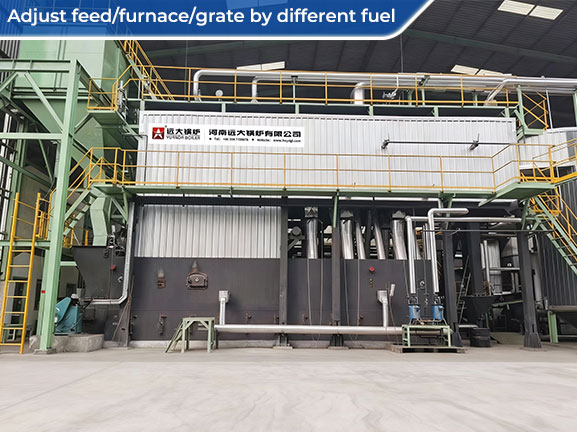

① No fuel size limit – Customized feeding and conveying methods are designed based on different fuel features and boiler models including hopper feeding, hydraulic pusher feeding and screw conveyor-sliding feeding ensure steady fuel feeding even distribution and precise combustion control.

② Three-step burning process (preheating + main combustion + burnout) – combustion efficiency ≥90%

③ Smart air control – multiple independent air chambers for precise airflow adjustment (preheating zone, drying zone, main combustion zone, coke zone, ash slag zone)

④ Active slag breaking and self-cleaning – moving/reciprocating grate breaks slag and removes ash automatically

⑤ Equipped with economizers and air preheaters further enhance fuel adaptability and thermal efficiency.

⑥ Wide load adjustment (30%-110%) with rapid response – adapts to production line fluctuations

⑦ PLC autoamtic control + HMI Touch screen – auto feeding, ignition, air-fuel ratio adjustment, ash removal, fault alarm and protection

⑧ Multiple environmental measures are adopted including multi-tube,wet scrubber or bag filter,ESP etc

⑨ Modular design – pre-assembled boiler body, feeding system, dust removal system, control system, reducing on-site work

⑩ Convenient maintenance – multiple inspection doors and observation holes for maintenance without shutdown

⑪ Optional denitrification equipment and fuel-adjusted SCR layout ensure low No. emissions and extend catalyst life.
