Gas/diesel steam generator | Electric steam generator | Waste heat steam generator
Industrial steam generator, water tube steam generator, fire tube steam generator, gas fired steam genrator, oil fired steam generator, coal steam generator, biomass wood steam generator, electric steam generator, stainless steel steam generator, waste heat steam genertor.
| Output: | steam |
| Thermal Capacity: | 0.1 - 50ton/h, 80 - 28000kw |
| Horsepower: | 4 to 2500hp |
| Available Fuel: | oil, gas, coal, wood, biomass, electricity, waste gas |
| Applied Industries: | food, beverage, laundry, dairy, garment, textile, palm oil, concrete, medical, paper, building materials, hotel etc |
Introduction
Henan Yuanda Boiler Corporation Limited is a globally influential enterprise dedicated to R&D(research & development) and promotion of steam generators, steam boilers.

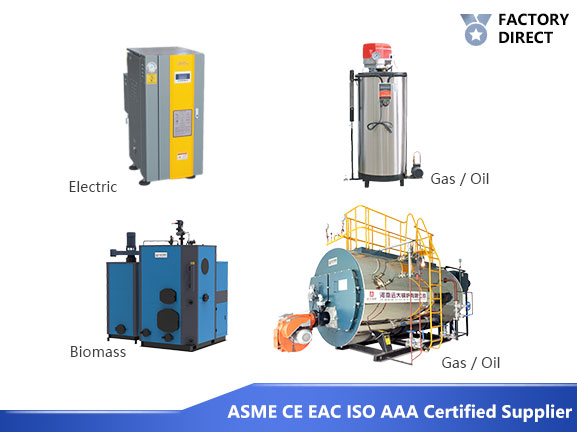

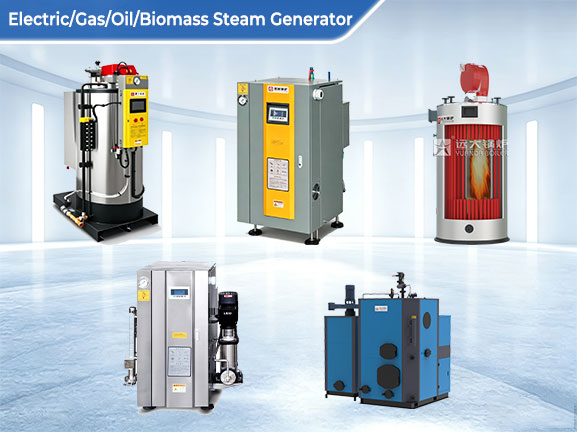

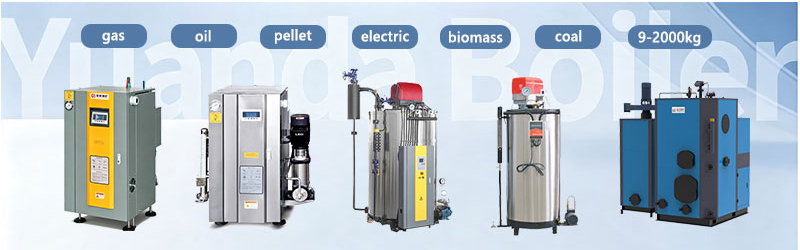

We have 4 kind steam generator powered by different fuel:

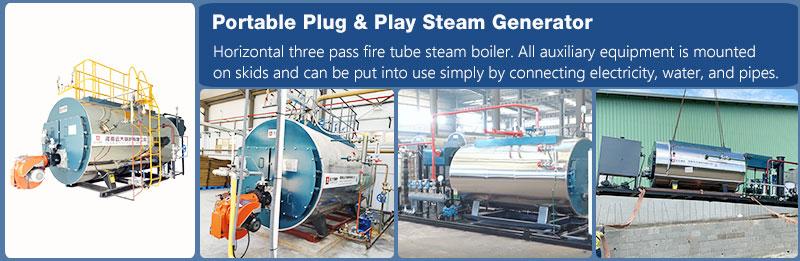

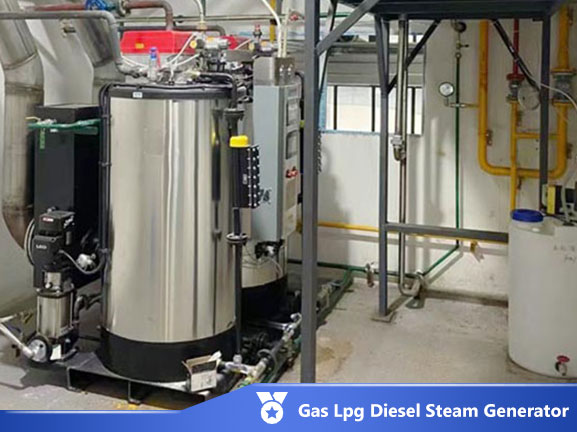

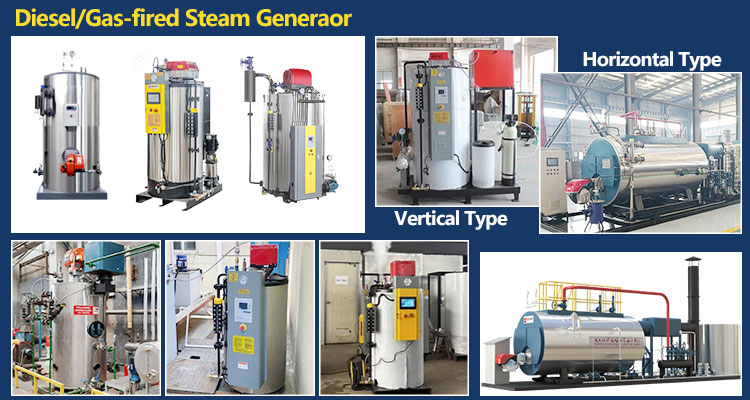

① Gas/oil steam generator (horizontal & vertical type)

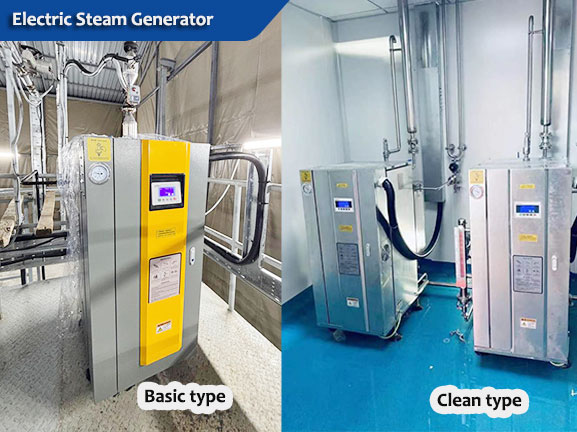

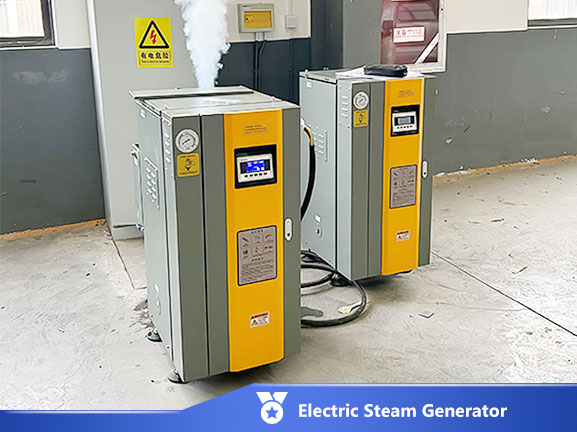

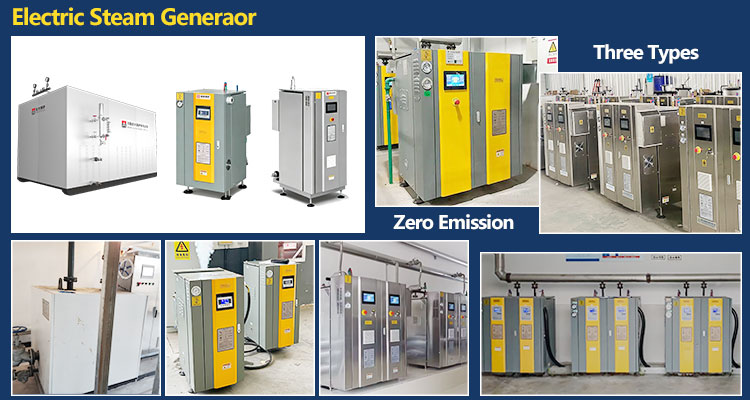

② Electric steam generator (regular & clean type)
③ Biomass/wood steam generator (compact type)
④ Waste heat steam generator (customized type)

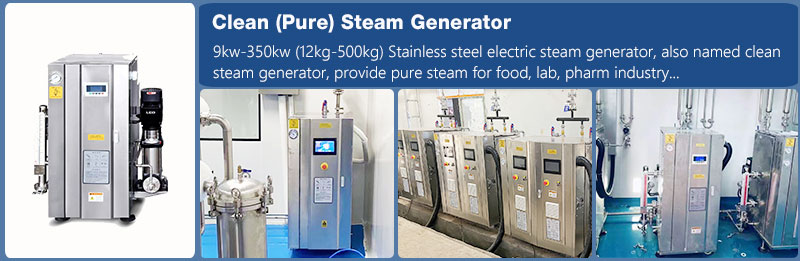

It is also called green steam generator, pure steam generator, stainless steel steam generator. Small scale, high quality steam quality and fast heat up. One key to start, movable boiler, competitive type, easy to install and use. Steam capacity from 100kg to 500kg/h.

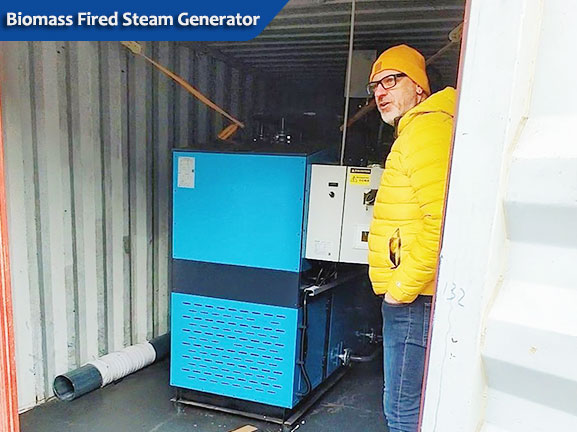

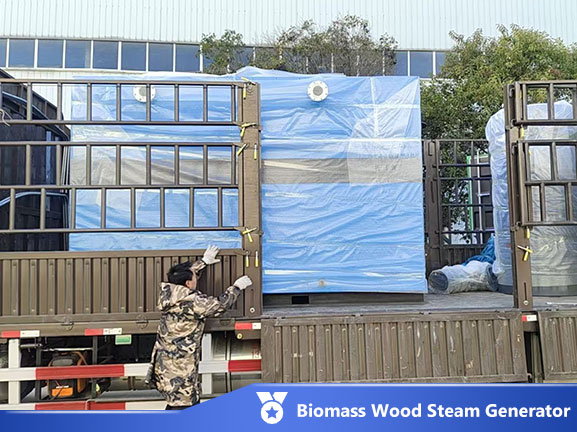

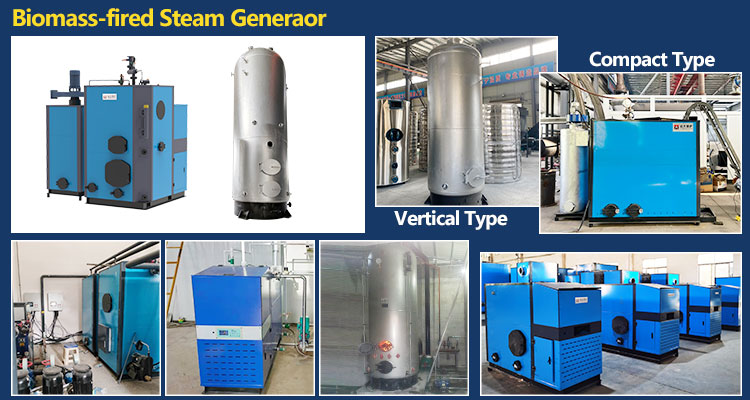

CWHS biomass/wood pellet boiler has strong fuel adaptability, automatic feeding, compact structure and can provide steam and hot water at the same time.

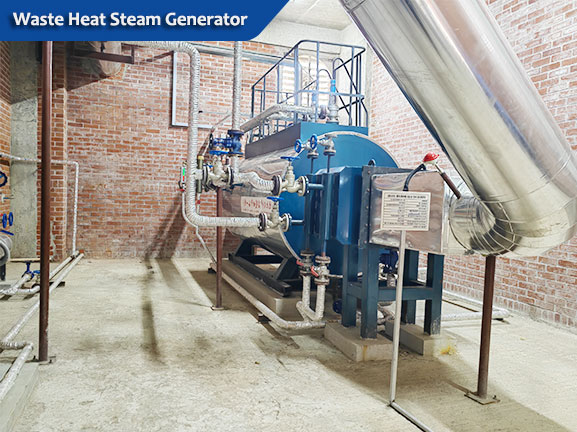

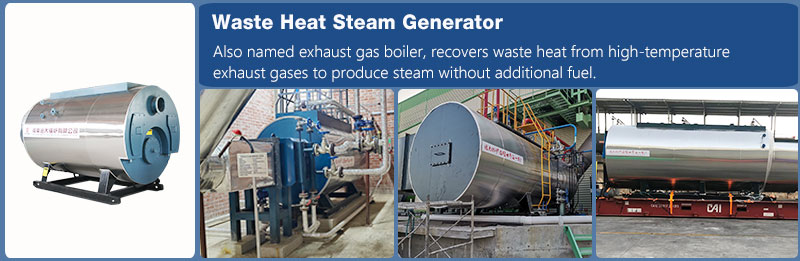

Customized waste heat boilers efficiently utilize exhaust gas to generate steam. Typically used in conjunction with gas generator sets and lithium bromide plants.
Yuanda's philosophy: "Quality First, Integrity Wins the World, and Common Development with Customers"
Company Strength
■ Founded in 1956, a premium supplier assessed, certified, and inspected by SGS Group. Leading industrial boiler manufacturer in China.■ Products sold to over 130 countries/regions, covering food, beverage, textiles, paper, wood industries. Serving over 100,000 customers.
Services & Markets
■ Local Support: We have long-term, reliable local agents, can provide one-stop service from installation and training to maintenance.■ High Repurchase Rate: 55% of our customers are repeat customers or referral customers.
Quality Assurance
(1) Strength calculation report with applied materials information;
(2) 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3) 100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4) Hydrostatic test: ensure the standard working pressure and safety;
(5) Third-party inspection report
Service
Parameter
| Model | Rated capacity | Input power | Rated pressure | Steam temperature | Thermal efficiency | Dimension | Weight |
| Unit | kg/h | kw | Mpa | ºC | % | mm | kg |
| LDR0.013-0.7 | 13 | 9 | 0.7 | 171 | 99.9 | 650×390×750 | 70 |
| LDR0.017-0.7 | 17 | 12 | 0.7 | 171 | 99.9 | 650×390×750 | 75 |
| LDR0.025-0.7 | 25 | 18 | 0.7 | 171 | 99.9 | 750×450×1050 | 90 |
| LDR0.035-0.7 | 35 | 24 | 0.7 | 171 | 99.9 | 750×520×1050 | 95 |
| LDR0.05-0.7 | 50 | 36 | 0.7 | 171 | 99.9 | 750×580×1150 | 101 |
| LDR0.065-0.7 | 65 | 48 | 0.7 | 171 | 99.9 | 800×580× 1200 | 115 |
| LDR0.075-0.7 | 75 | 54 | 0.7 | 171 | 99.9 | 800×580× 1300 | 140 |
| LDR0.085-0.7 | 85 | 60 | 0.7 | 171 | 99.9 | 800×600× 1300 | 145 |
| LDR0.1-0.7 | 100 | 72 | 0.7 | 171 | 99.9 | 860×650× 1390 | 172 |
| LDR0.11-0.7 | 110 | 80 | 0.7 | 171 | 99.9 | 860×650× 1390 | 185 |
| LDR0.125-0.7 | 125 | 90 | 0.7 | 171 | 99.9 | 860×650× 1430 | 190 |
| LDR0.15-0.8 | 150 | 108 | 0.8 | 175 | 99.9 | 920×760×1600 | 245 |
| LDR0.18-0.8 | 180 | 126 | 0.8 | 175 | 99.9 | 920×760× 1600 | 260 |
| LDR0.2-0.8 | 200 | 144 | 0.8 | 175 | 99.9 | 1130×750× 1780 | 450 |
| LDR0.25-0.8 | 250 | 180 | 0.8 | 175 | 99.9 | 950×900× 1830 | 650 |
| LDR0.3-0.8 | 300 | 216 | 0.8 | 175 | 99.9 | 1320×1040× 1920 | 760 |
| LDR0.4-0.8 | 400 | 288 | 0.8 | 175 | 99.9 | 1380×1040× 2070 | 890 |
| LDR0.5-0.8 | 500 | 360 | 0.8 | 175 | 99.9 | 1020×890× 2350 | 1020 |
| WDR0.5-1.0 | 500 | 360 | 1 | 184 | 98 | 1755*1180*1510 | 1400 |
| WDR1.0-1.0 | 1000 | 700 | 1 | 184 | 98 | 2530*1380*1480 | 1730 |
| WDR2-1.0 | 2000 | 1400 | 1 | 184 | 98 | 2530*2000*2080 | 2730 |
| WDR3-1.25 | 3000 | 2100 | 1.25 | 194 | 98 | 2630*2210*2160 | 3420 |
| WDR4-1.25 | 4000 | 2800 | 1.25 | 194 | 98 | 3680*2360*2380 | 4320 |
| WDR5-1.25 | 5000 | 3500 | 1.25 | 194 | 98 | 3980*2580*2560 | 5130 |
