Electric steam boiler | Electric hot water boiler | Eco-friendly boiler
YUANDA electric boiler is meet low/high pressure steam and hot water requirements for industrial, commercial, and specialized uses. They are clean, quiet, easy to install and compact. No fuel combustion considerations, no chimney and emissions worry.
| Transfer Medium: | steam, hot water |
| Capacity: | 9-7000kw, 0.05-10 ton |
| Horsepower: | 6-700hp |
| Style: | horizontal, vertical |
| Applied Industry: | laundry, resort, hotel, building, hospital, food, beverage, autoclave, dairy, feed mill, garment, textile, pharm, concrete etc |
Introduction
YUANDA electric boiler is designed for industrial processes requiring high temperatures steam and hot water. High thermal efficiency, no noise, no pollution, automatic control.

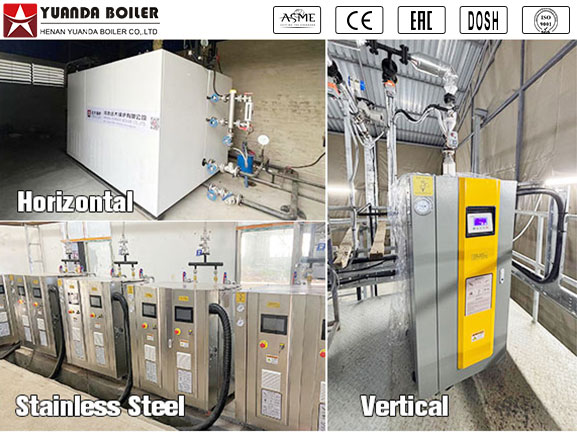

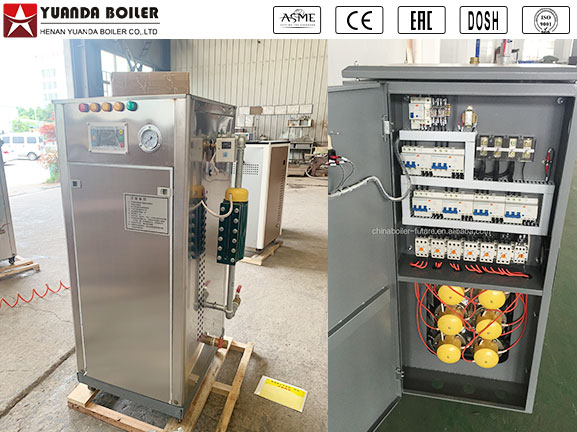

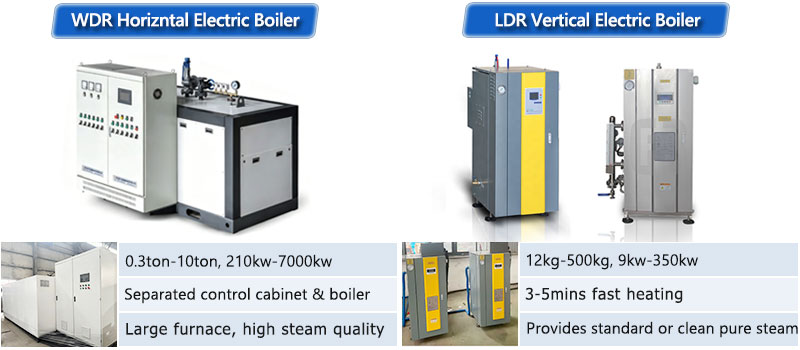

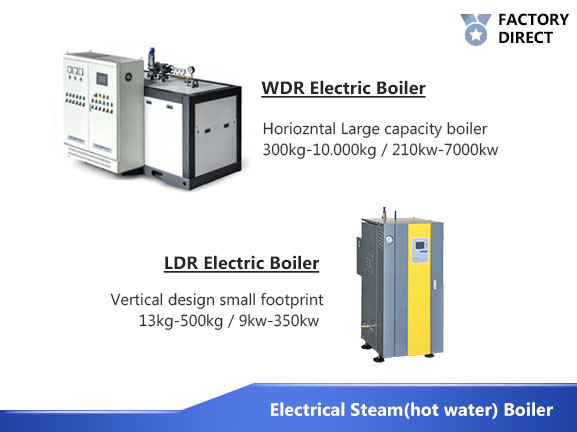

Two types horizontal electric boiler and vertical electric boiler for choose, with transfarmer and electrical control panel.
Widely use for food and beverage machinery, washing and ironing equipment, building materials and plastics machinery, papermaking and printing equipment, chemical extraction equipment, pharmaceutical equipment, etc.

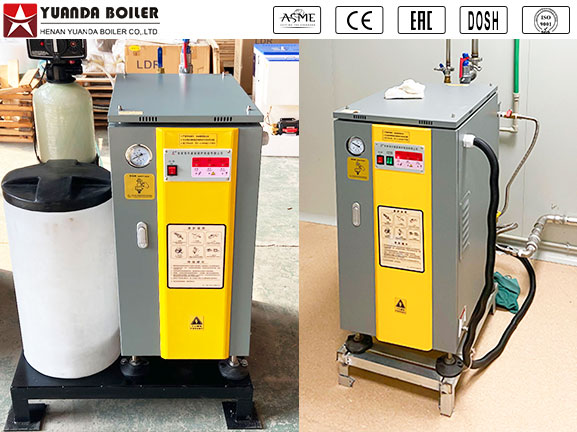

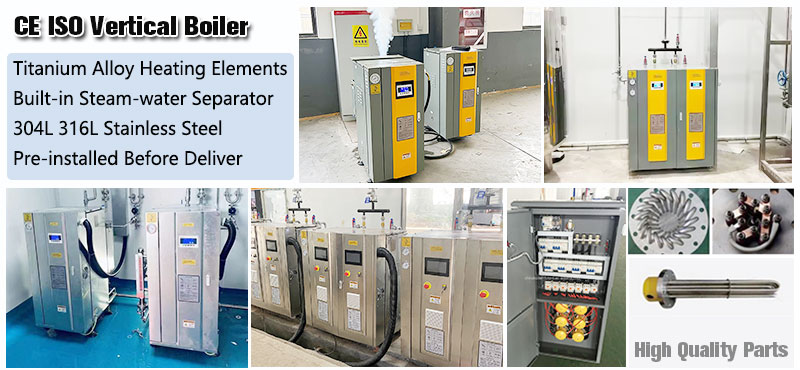

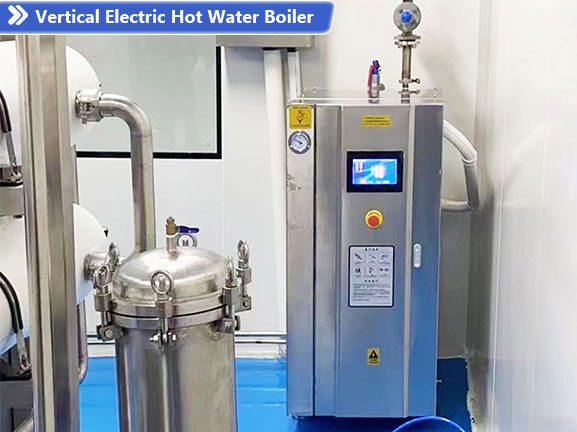

LDR vertical electric boiler, also known as steam generator, electric steam generator, small electric boiler, stainless steel boiler. Cabinet design style, Composed of electric heating elements, components, drums, accessories, strong and weak current controlsystems, etc.
Main characteristics：
● Power 9kw-350kw, steam capacity 13kg-500kg
● Produce steam/hot water within 3-5 minutes
● Pressure up to 10 kg/cm²
● One key to start
● Small food print
● All internal piping and boiler control system has been connected before delivering the factory

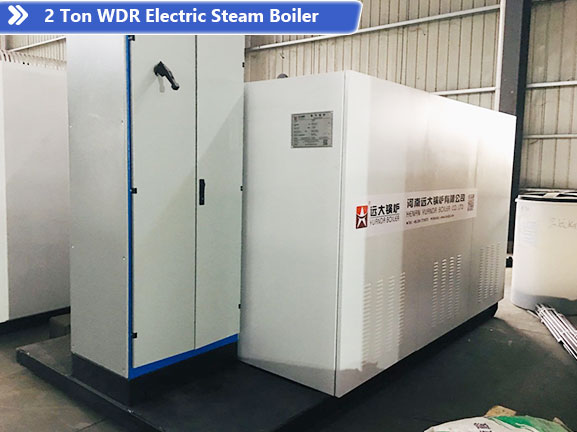

Main characteristics：
● Power 210kw-7000kw, steam capacity 300kg-10.000kg
● Produce steam within 20 minutes
● Pressure up to 20 kg/cm²

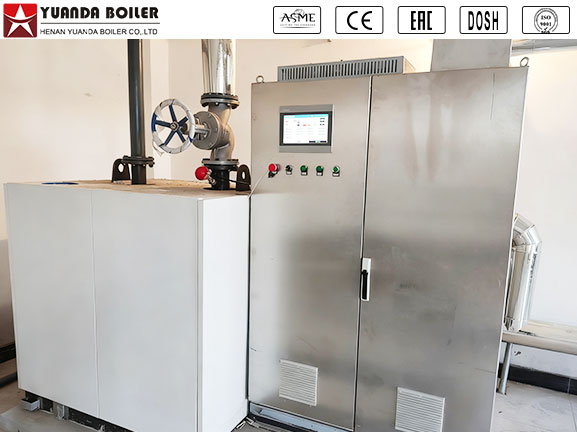

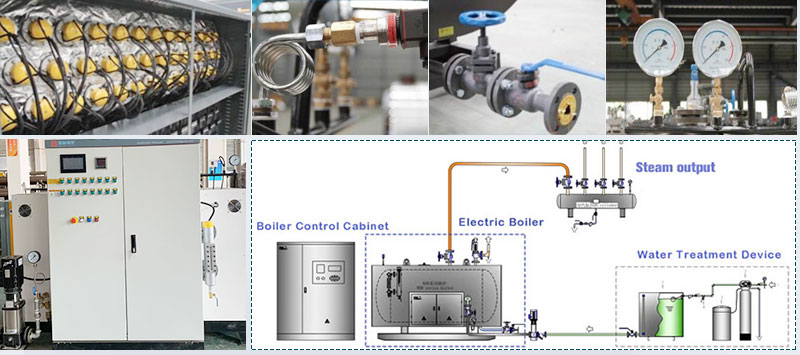

● Separate boiler body and control cabinet
● Automatic blow-down system
● Large load adjustment range
99.9% High Thermal Efficiency
No matter horizontal or vertical electric boiler, thermal efficiency is as high as 99%;
Multi-layer insulation of aluminum silicate fiber blanket.High Quality and Long Service Life
Adopt well-known stainless steel electric heating tubes, high pressure resistance and long service life;
Boiler body, control cabinet is separated, avoid high temperature damage.
Easy to Install, Lower Installation Cost
Boiler body is compact design, occupies small area, no need to build separate boiler room;
No need to arrange fuel feeding system, flue, chimney, dust removal system etc.
Easy to Use, 100% Safe
PLC fully automatic control, LCD display, convenient operation;
Overpressure, overtemperature, low water level alarm function;
Power off protection function.
Environmental Protection
Powered by electricity, no gas, oil or solid fuel is required, zero emission, no pollution;
Compatible with renewable energy systems.
Company Strength
■ Founded in 1956, a premium supplier assessed, certified, and inspected by SGS Group. Leading industrial boiler manufacturer in China.
■ Holds international boiler certifications: CE, ASME, DOSH, EAC, GOST, ISO
■ Over 17 years of export experience, gold-level supplier, ensuring payment and delivery.
■ Professional team integrating R&D, production, sales, and service.
■ 53,053㎡ Factory area, supporting video/VR factory audits or third-party inspections.
■ Engineers serving over 50 countries.
■ Products sold to over 130 countries/regions, covering food, beverage, textiles, paper, wood industries. Serving over 100,000 customers.
Services & Markets
■ Local Projects: We have installed many boiler projects in different countries, can provide boiler case studies.
■ High Repurchase Rate: 55% of our customers are repeat customers or referral customers.
■ Local Support: We have long-term, reliable local agents, can provide one-stop service from installation and training to maintenance.
■ Comprehensive Service: From project planning to after-sales support, we provide comprehensive support throughout the whole boiler life, with 24/7 online support and immediate response.
Quality Control
(1) Strength calculation report with applied materials information;
(2) 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3) 100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4) Hydrostatic test: ensure the standard working pressure and safety;
(5) Third-party inspection report
(6) Passed ASME CE ISO DOSH EAC GOST boiler level certificate.
Service
Comprehensive Boiler Solutions – From Planning to Lifetime Support
Pre-Sales Support:Expert Design Guidance: Help you select the optimal boiler model tailored to your industry needs.
Detailed Technical Documentation: Provide certificates, CAD drawings, consumption analysis, and boiler room planning.
Customized Solutions: Deliver complete system designs including installation material lists.
Competitive Pricing: Factory-direct rates with uncompromised quality.
After-Sales Assurance:Genuine Spare Parts: Original components with reliable supply.
Global Installation & Commissioning: Overseas engineer dispatch available.
On-Site Training: Ensure safe and efficient operation.
24/7 Online Support: Rapid response for any technical needs.
Warranty & Lifelong Care: One-year free maintenance and lifetime service support.
Parameter
| Model | Rated capacity | Input power | Rated pressure | Steam temperature | Thermal efficiency | Dimension | Weight |
| Unit | kg/h | kw | Mpa | ºC | % | mm | kg |
| LDR0.013-0.7 | 13 | 9 | 0.7 | 171 | 99.9 | 650×390×750 | 70 |
| LDR0.017-0.7 | 17 | 12 | 0.7 | 171 | 99.9 | 650×390×750 | 75 |
| LDR0.025-0.7 | 25 | 18 | 0.7 | 171 | 99.9 | 750×450×1050 | 90 |
| LDR0.035-0.7 | 35 | 24 | 0.7 | 171 | 99.9 | 750×520×1050 | 95 |
| LDR0.05-0.7 | 50 | 36 | 0.7 | 171 | 99.9 | 750×580×1150 | 101 |
| LDR0.065-0.7 | 65 | 48 | 0.7 | 171 | 99.9 | 800×580× 1200 | 115 |
| LDR0.075-0.7 | 75 | 54 | 0.7 | 171 | 99.9 | 800×580× 1300 | 140 |
| LDR0.085-0.7 | 85 | 60 | 0.7 | 171 | 99.9 | 800×600× 1300 | 145 |
| LDR0.1-0.7 | 100 | 72 | 0.7 | 171 | 99.9 | 860×650× 1390 | 172 |
| LDR0.11-0.7 | 110 | 80 | 0.7 | 171 | 99.9 | 860×650× 1390 | 185 |
| LDR0.125-0.7 | 125 | 90 | 0.7 | 171 | 99.9 | 860×650× 1430 | 190 |

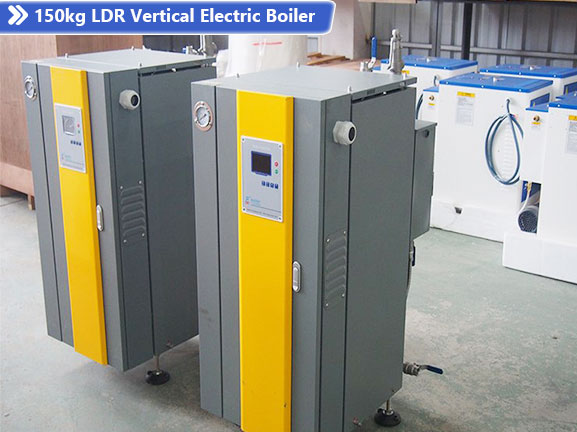

| LDR0.15-0.8 | 150 | 108 | 0.8 | 175 | 99.9 | 920×760×1600 | 245 |
| LDR0.18-0.8 | 180 | 126 | 0.8 | 175 | 99.9 | 920×760× 1600 | 260 |
| LDR0.2-0.8 | 200 | 144 | 0.8 | 175 | 99.9 | 1130×750× 1780 | 450 |
| LDR0.25-0.8 | 250 | 180 | 0.8 | 175 | 99.9 | 950×900× 1830 | 650 |
| LDR0.3-0.8 | 300 | 216 | 0.8 | 175 | 99.9 | 1320×1040× 1920 | 760 |
| LDR0.4-0.8 | 400 | 288 | 0.8 | 175 | 99.9 | 1380×1040× 2070 | 890 |
| LDR0.5-0.8 | 500 | 360 | 0.8 | 175 | 99.9 | 1020×890× 2350 | 1020 |
| WDR0.5-1.0 | 500 | 360 | 1 | 184 | 98 | 1755*1180*1510 | 1400 |
| WDR1.0-1.0 | 1000 | 700 | 1 | 184 | 98 | 2530*1380*1480 | 1730 |
| WDR2-1.0 | 2000 | 1400 | 1 | 184 | 98 | 2530*2000*2080 | 2730 |
| WDR3-1.25 | 3000 | 2100 | 1.25 | 194 | 98 | 2630*2210*2160 | 3420 |
| WDR4-1.25 | 4000 | 2800 | 1.25 | 194 | 98 | 3680*2360*2380 | 4320 |
| WDR5-1.25 | 5000 | 3500 | 1.25 | 194 | 98 | 3980*2580*2560 | 5130 |
