Gas diesel thermal oil boiler | Coal/biomass thermal oil boiler | Electric thermal oil heater
Thermal oil boiler for hot oil heating systems, also called organic heat carrier oil boiler / hot oil heater. Transfer oil can be used in high temperature up to 650℉ / 350℃ in industrial processes. Widely service for asphalt, metal, plastic, rubber, plasterboard, printing/dyeing, oil refinery, chemical, wood/plywood, building materials, food, etc.
| Layout: | horizontal, vertical, portable |
| Capacity: | 25kw to 14,000kw / 100,000kcal to 12,000,000Kcal |
| Temperature: | max 350℃ |
| Available Fuel: | gas, lpg, diesel, hfo, coal, charcoal, wood, biomass, briquette, electric etc |
| Applied Industries: | fryer, reactor, refinery, resin, egg tray, plastic, dyeing, asphalt, rubber, electroplating |
Introduction
Thermal oil boiler is an industrial heating system that uses thermal oil as medium, the high-temperature oil pumps pushes the hot oil through a closed-loop pipe network to industrial equipment like hot press, dryers or reactors etc. The oil gives off its heat to the process and then flows back to the boiler to be heated again and again.

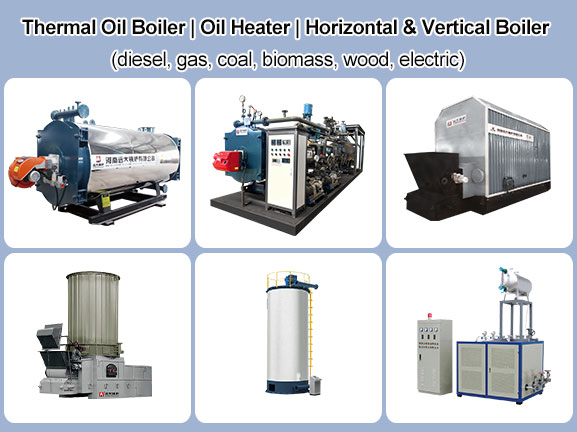

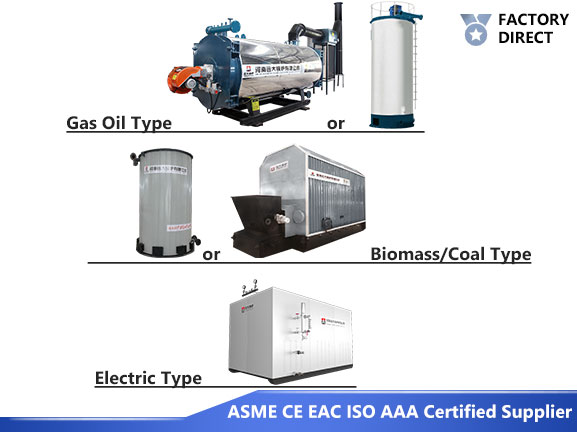

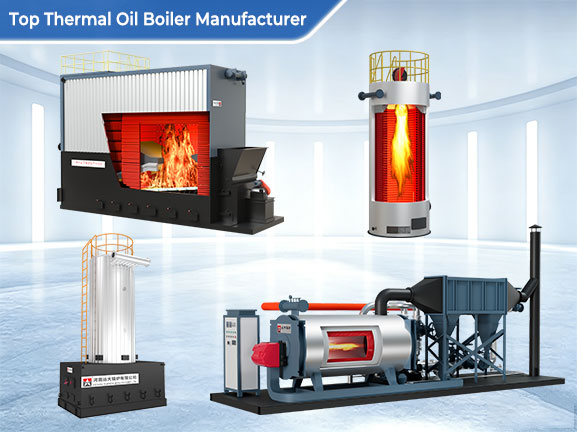

We have kinds of thermal oil boiler(thermic fluid heater), three coil tubes boiler, "grate + furnace" boiler, horizontal boiler, vertical boiler, skid mounted boiler, fueled by gas, oil, coal, wood, biomass, solid fuel, and electric.
We are Grade A Thermal Oil Boiler Manufacturer Founded in 1956. More than 20,000 projects in 135 countries. We offer comprehensive services from boiler model select, design, manufacturing, installation, training, and turnkey solution. Our own engineering and service teams save your time and costs.

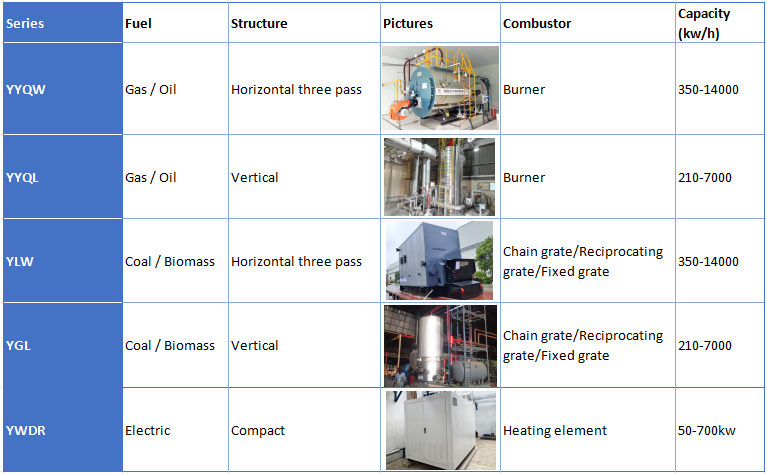

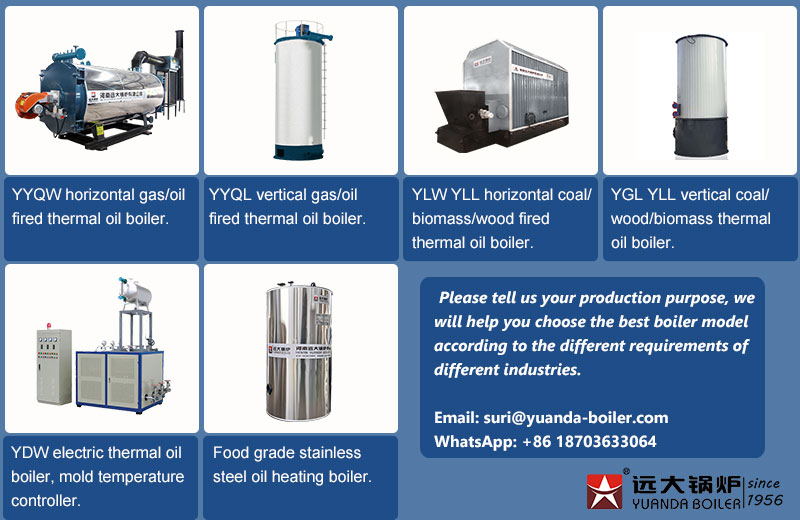

Product Series

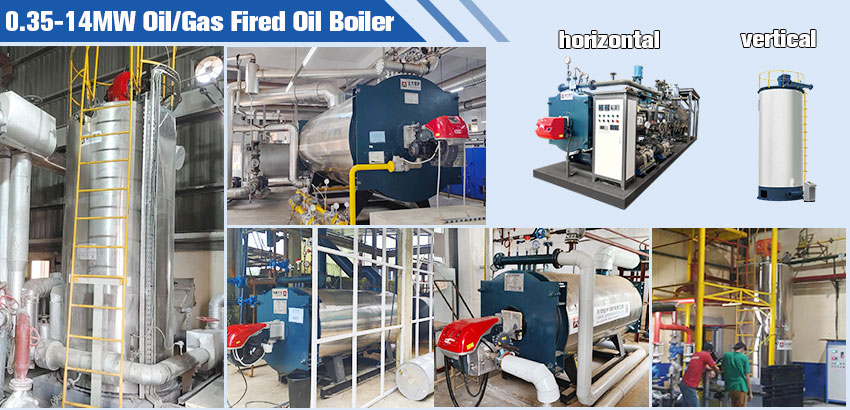

Automatic Diesel Gas Thermal Oil Boilers

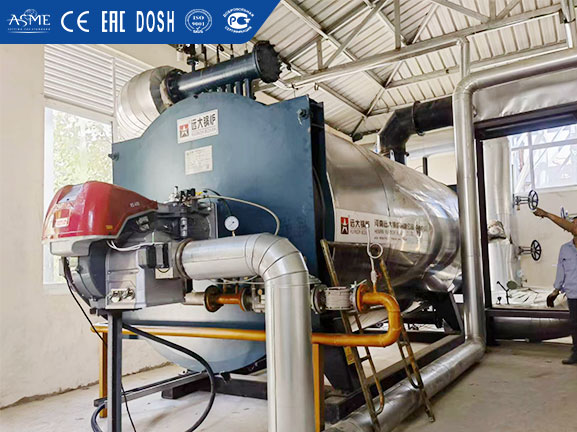

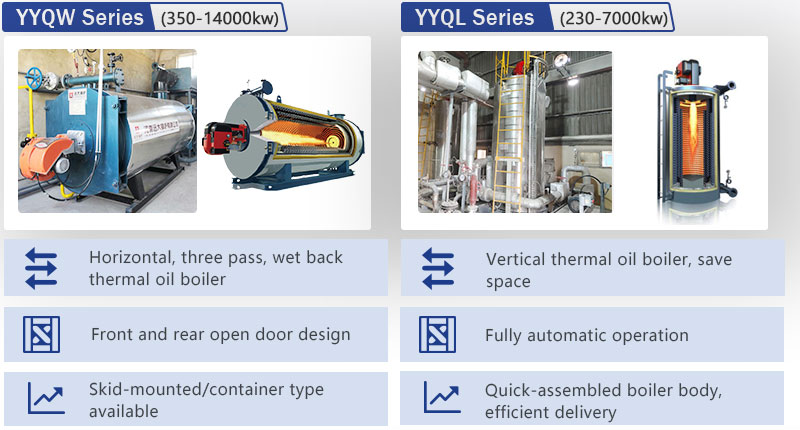

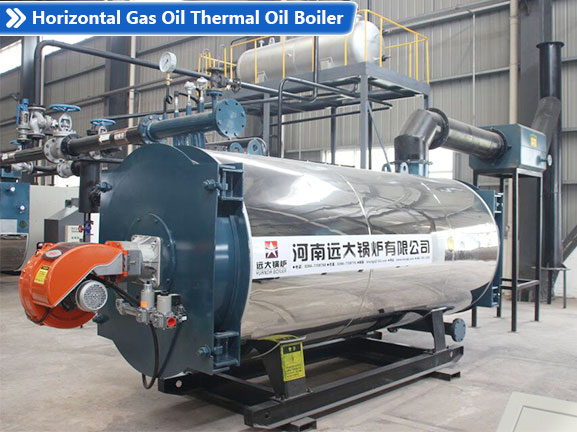

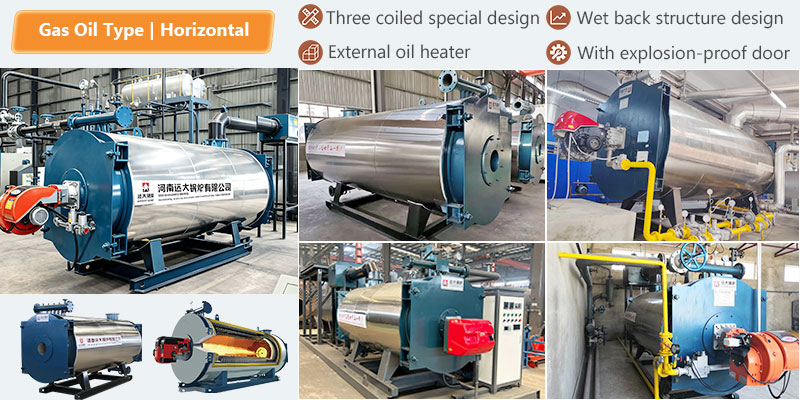

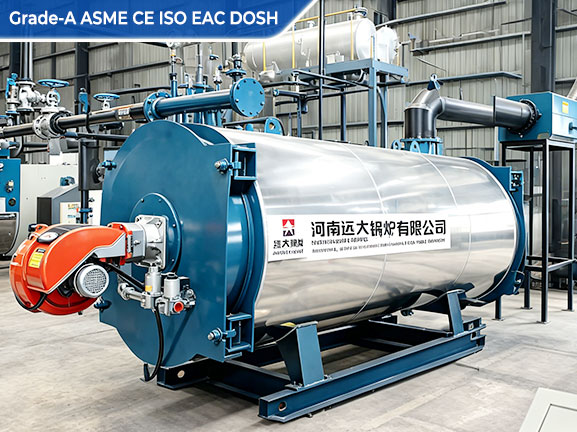

① YYQW Series: YYQW is a horizontal thermal oil boiler with a three‑coil wet‑back furnace. It has an external oil tank, top Italian burner, and double‑door smoke box that makes inspection easy. The boiler runs automatically and is simple to maintain. It also can be supplied as a skid‑mounted unit, fast installation. Power range is from 350 kW up to 14.000 kW.

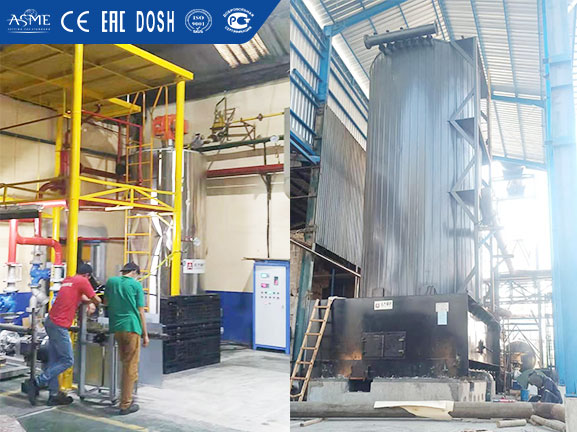

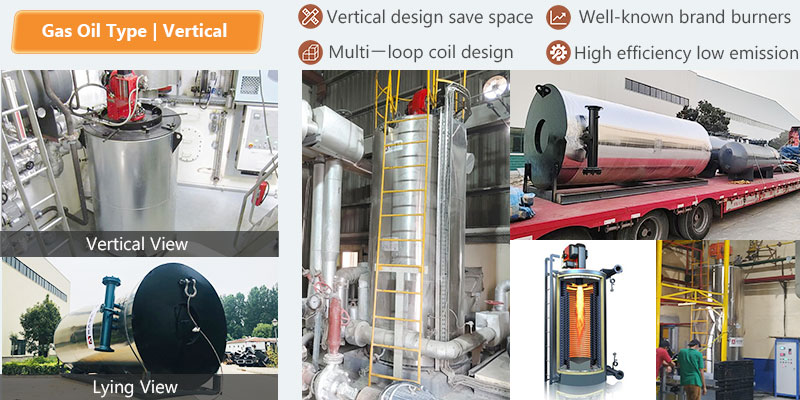

② YYQL Series: YYQL is vertical thermal oil boiler with compact three‑coil design, external oil tank, and Italian burner. It is highly automated, small footprint, easy to maintain, offers 210–7,000 kW power.

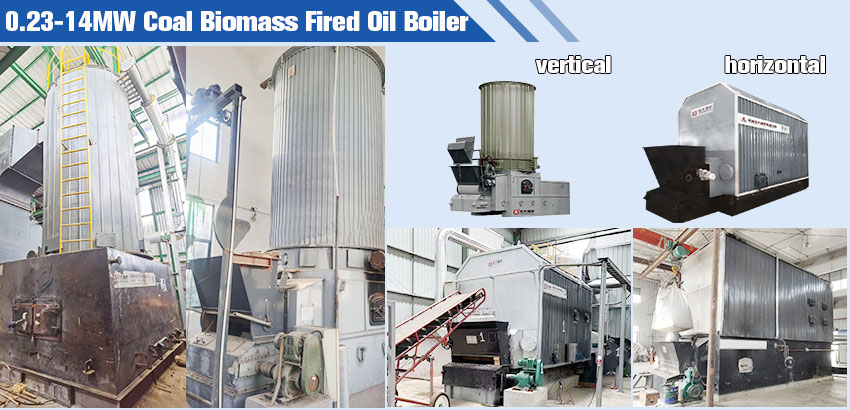

Economic Coal Wood Biomass Thermal Oil Boilers
Note: The boiler furnace and combustion grate are designed differently depending on the fuel used.

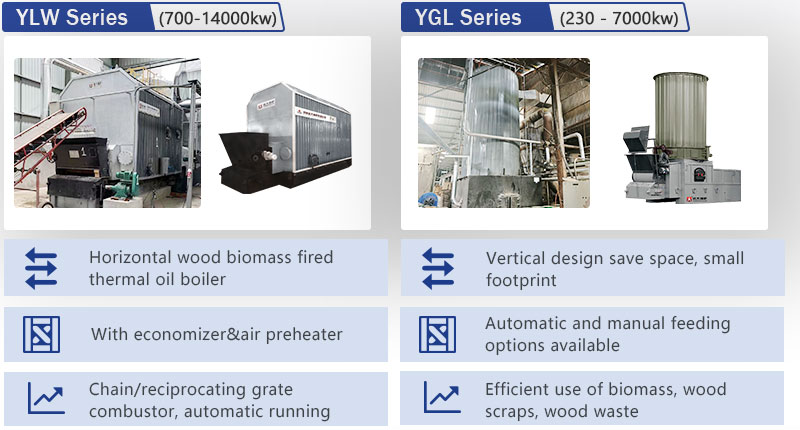

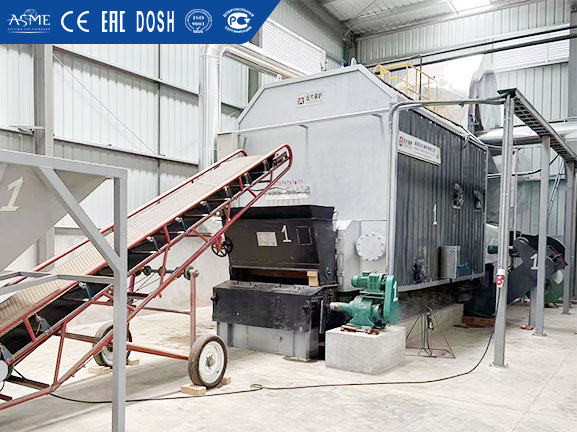

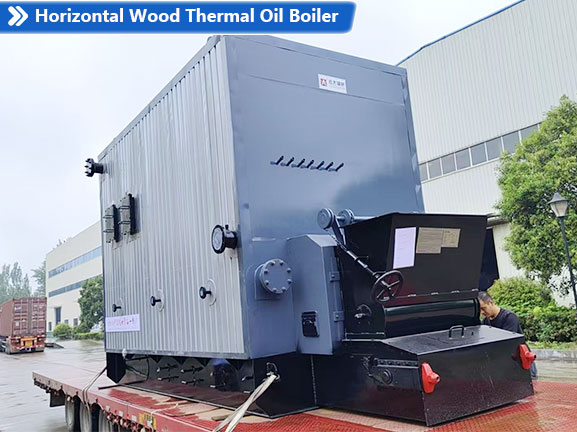

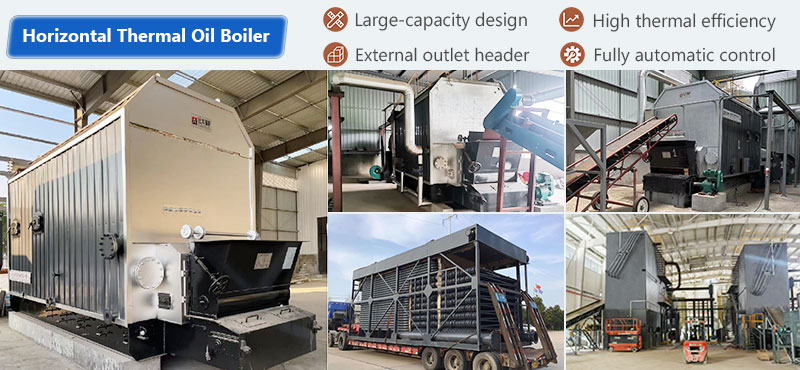

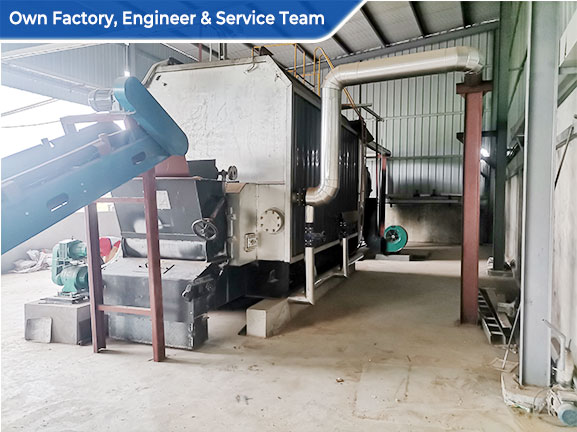

① YLW Series: YLW is horizontal thermal oil boiler with a patented serpentine coil and customized combustion grate. Wet-back design, multi soot blower, big access doors, and circulation oil pump, for high thermal efficiency, easy ash cleaning and maintenance. Automatic feeding and ash removal, power from 350 kW to 29.000 kW.

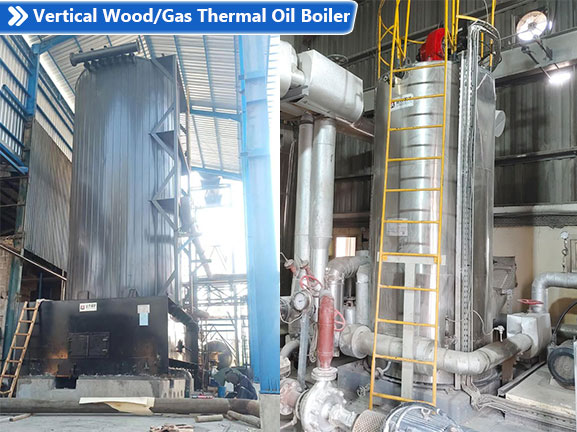

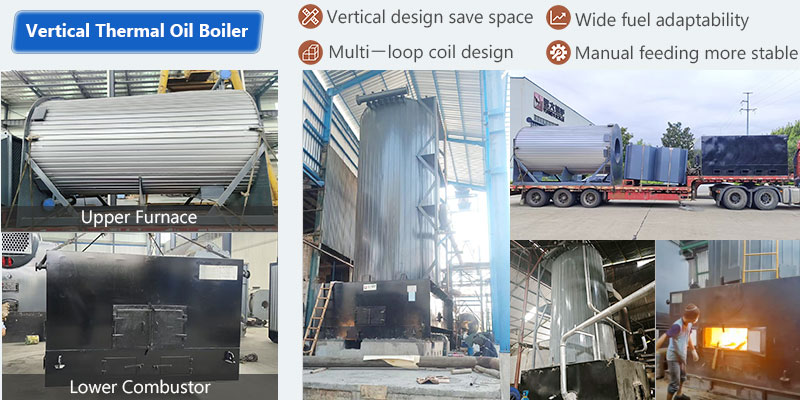

② YGL Series: YGL is vertical thermal oil boiler with a compact, space‑saving design. It runs on coal and biomass fuels like firewood, bark, wood waste, solid fuel. A three‑pass coil and forced circulation provide high temperature (up to 350°C) at low pressure. Power range is 230 kW to 7000 kW.

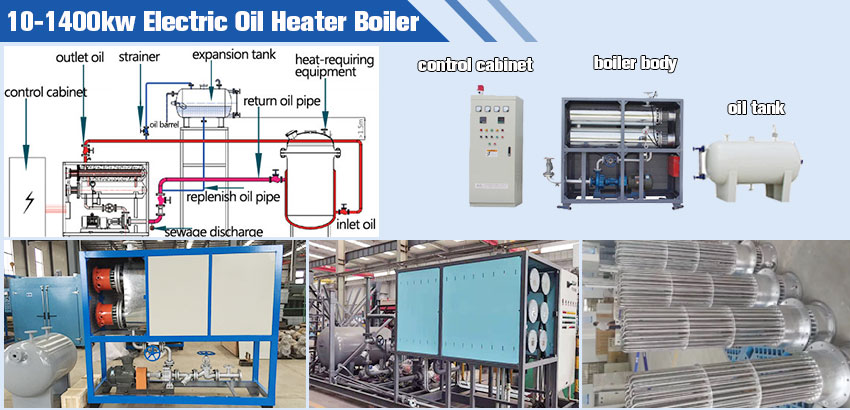

Clean Electric Thermal Oil Boilers
Electric thermal oil heater, 10-1400kw oil boiler. Easy to install, automatic control, no need labor, clean and environmentally friendly, no smoke, no pollution. Thermal efficiency reaches over 97%. Stable heating and accurate temperature adjustment ±1℃, explosion-proof level: Exd II BT4, protection level: IP55.
Boiler Video Watching:
https://www.boilerindustrial.com/about/yuanda-boiler-video.html
Parameter
| Model |
Rated thermal power (KW) |
Rated working pressure (Mpa) |
Thermal oil outlet temperature (℃) |
Thermal oil inlet temperature (℃) |
Fuel consumption | |
| Light diesel oil(kg/h) | Natural gas(Nm3/h) | |||||
| YY(Q)W-700Y(Q) | 700 | 0.8/1.0 | 280/320 | 250/290 | 61.3 | 73.6 |
| YY(Q)W-1400Y(Q) | 1400 | 0.8/1.0 | 280/320 | 250/290 | 122.6 | 147.1 |
| YY(Q)W-3000Y(Q) | 3000 | 0.8/1.0 | 280/320 | 250/290 | 249.2 | 296.4 |
| YY(Q)W-3500Y(Q) | 3500 | 0.8/1.0 | 280/320 | 250/290 | 305.6 | 366.8 |
| YY(Q)W-4200Y(Q) | 4200 | 0.8/1.0 | 280/320 | 250/290 | 367.5 | 436.6 |
| YY(Q)W-5600Y(Q) | 5600 | 0.8/1.0 | 280/320 | 250/290 | 489.6 | 586.8 |
| YY(Q)W-7000Y(Q) | 7000 | 0.8/1.0 | 280/320 | 250/290 | 612.3 | 726.9 |
| Note: for place limited, we didnot list all models, if you need other capacity, other pressure, use other fuel, please send us inquiry directly, we will send you detailed parameter. | ||||||
Our Service
Comprehensive Boiler Solutions – From Planning to Lifetime Support
Pre-Sales Support:Warranty & Lifelong Care: One-year free maintenance and lifetime service support.
About Company
■ Founded in 1956, a premium supplier assessed, certified, and inspected by SGS Group. Leading industrial boiler manufacturer in China.
■ Holds international boiler certifications: CE, ASME, DOSH, EAC, GOST, ISO
■ Over 17 years of export experience, gold-level supplier, ensuring payment and delivery.
■ Professional team integrating R&D, production, sales, and service.
■ 53,053㎡ Factory area, supporting video/VR factory audits or third-party inspections.

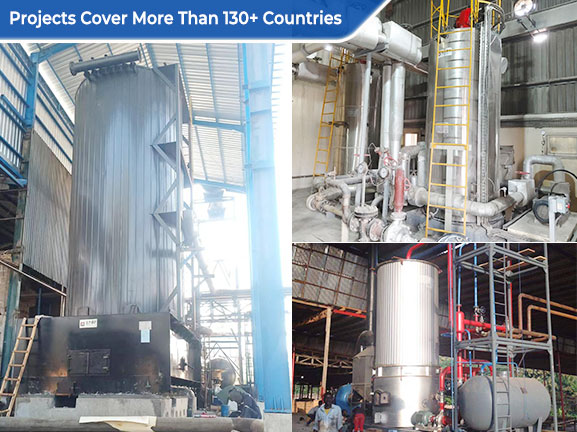

■ Engineers serving over 50 countries.
■ Products sold to over 130 countries/regions, covering food, beverage, textiles, paper, wood industries. Serving over 100,000 customers.
Relate Cases
Recommend Boiler
Gas/Oil Thermal Oil Boiler
120kw to 14,000kw gas oil fired boiler, automatic thermal oil heating boiler. Horizontal and vertical boiler
Biomass Thermal Oil Boiler
Solid fuel, waste wood thermal oil boiler, 120kw to 14000kw heating capacity.
Electric Thermal Oil Boiler
10kw-7000kw electrical oil heater boiler. No smoke, no pollution. Thermal efficiency reaches over 97%.
